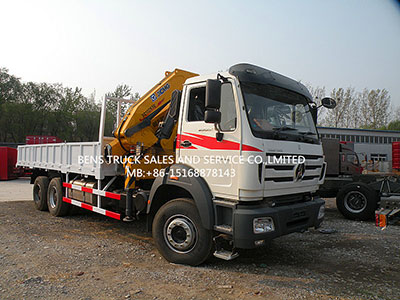

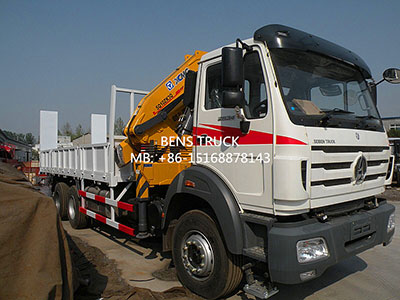

BEI BEN 6×4 Flatbed Truck With Crane
- Engine: Weichai WD615.34, 340hp, Euro2 Emission
- Displacement: 9.726L
- Transmission: 9JS150A gearbox, 9 forward, 1 reverse
- Steering: ZF8098 hydraulic steering with power assistance
- Clutch: Φ430 Diaphragm Spring, Hydraulic boosting
- Front axle : 7.5T
- Double-shoe pneumatic brake, non-driving steering axle
- Middle Rear axle : 13Tx2
- Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
- Wheelbase: 4450+1450mm
- Cab: NG80B short cabin, no bed, with Air Conditioner.
- Rim/Tires: 315/80R22.5 tubeless tire(one spare tire)
- Cargo Box Inner Size: 6300x2500x600mm
- Thickness of Cargo Box: floor: 3mm, side: 1.5mm
- Number of Twist Locks: 4 Units
- XCMG Folded Arm Truck Mounted Crane
- Model: XCMG SQ6.3ZK3Q
- Max Lifting Capacity: 6300kg
- Max Lifting Length: 9750mm
- Oil Tank Capacity: 90L
- Rotation Angle: 360°All Rotation
- Crane Weight: 2250kg
- Install Space: 1050mm
- Overall Dimensions: 9500×2600×3800 mm
- Color: white, red, green
- Fuel Tank: 400L
